Product Support
Status:
Discontinued
Warranty:
5 Years from Purchase
Full Details
Spares Available:
Yes
Serial Number:
Yes

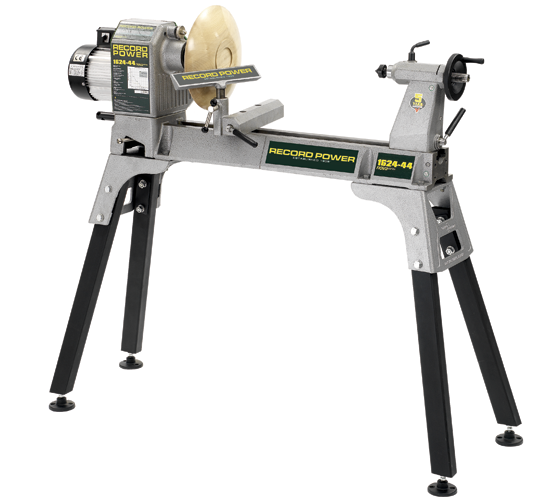

1624 Eight Speed Lathe
Swivel Headstock:
Outboard Turning:
Cast Iron Bed:
Solid Steel Bed Bars:
Integral Legstand:
Extendable Bed Length:
Bench Mountable:
Spindle Lock:
Electronic Variable Speed:
Bowl Rest:
Legstand:
Variable Speed Upgrade:
Bed Extension:
Maximum bowl diameter: 740 mm (30")
Maximum between centres: 600 mm (24")
Maximum swing over bed: 400 mm (16")
Spindle speeds: 178, 300, 570, 850, 1200, 1800, 2400 & 3000 rpm
Motor: 1.5 hp
Thread: 1 1/4" x 8 TPI
Taper: 2 Morse Taper
Weight: 114 kg
Size: W1330 x D450 x H390 mm
Knowledge Base Links
Spiralling on Spindles
I am having trouble with spiralling on spindles, and I was wondering if the problem bay be wear on the lathe headstock bearings?
The most likely cause of spiraling is that your centres are out of alignment. You should also check that your turning tools are sharp and your lathe speed is correct.
