Home > Products > Woodworking Machines > Dust Extraction > CamVac Extractors with Steel Pipe Inlet > Heavy-Duty Extractor

ONLY £999.99

Includes:

ZAMV 2 M of 100 mm Dust Extraction Hose LH Helix
RRP £27.49

CGV486-6 Heavy-Duty Extractor

(104930)
CGV486-6 Heavy-Duty Extractor
CVA486-27-100 486 Caster Set
CVA486-27-100 486 Caster Set £72.99

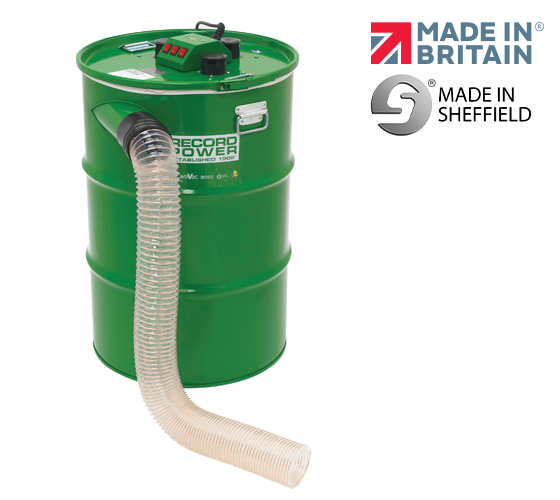

The CGV486 is the largest machine in the CamVac range, featuring a huge 200 litre capacity. Often used in industrial environments, it is ideal for heavy duty use. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum.
The lid features an acoustic outlet for the motor - When the optional hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.

Print This Page

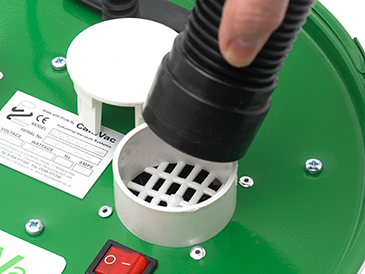

Acoustic Outlet

Acoustic Outlet

The acoustic outlet effectively reduces noise during operation when the optional 2 1/2” hose is fitted.

Three Stage Filtration

Three Stage Filtration

The drum filter and motor filters give 3 stage filtration for fine dust.

Cyclonic Inlet

Cyclonic Inlet

The unique cyclonic inlet directs the waste away from the filters and gives excellent suction.

Print This Page

Wheel kit: Wheel kit

Heavy Duty Cloth Filter: Heavy Duty Cloth Filter

Single Motor: Single Motor

Twin Motor: Twin Motor

Triple Motor: Triple Motor

Two Stage Filtration: Two Stage Filtration

Three Stage Filtration: Three Stage Filtration

Low Noise Output: Low Noise Output

Cyclonic Steel Pipe Inlet: Cyclonic Steel Pipe Inlet

Auto Switching: Auto Switching

Filtration: 0.5 microns

Air Flow: 162 litres / second

Capacity: 200 litres

Motor input P1: 3 x 1 kW

Inlet Diameter: 4"

Weight: 28.5 kg

Size: W596 x D638 x H860 mm

Print This Page
Download
CamVac Manual 3.6

PDF reader required


104930 Heavy-Duty Extractor
104930
£999.99
Wheel kit
Wheel kit
Heavy Duty Cloth Filter
Heavy Duty Cloth Filter
Single Motor
Single Motor
Twin Motor
Twin Motor
Triple Motor
Triple Motor
Two Stage Filtration
Two Stage Filtration
Three Stage Filtration
Three Stage Filtration
Low Noise Output
Low Noise Output
Cyclonic Steel Pipe Inlet
Cyclonic Steel Pipe Inlet
Auto Switching
Auto Switching
Filtration
0.5 microns
Air Flow
162 litres / second
Capacity
200 litres
Motor input P1
3 x 1 kW
Inlet Diameter
4"
Weight
28.5 kg
Size
W596 x D638 x H860 mm
